In this article, I’ll guide you on:

• How to containerize Angular app and run it using Docker-compose
• How to access it from the outside world by setting up NGINX as a reverse proxy
• Adding an extra layer of security by installing an SSL certificate for a safer connection

To create a Docker container for the angular app, I’m using a private git repository but the process will be the same for all angular apps.

If you have any suggestions and improvements, they are always appreciated.

Containerize the Angular app and run it using Docker-compose
To get started you will need a VPS (Ubuntu), you can choose any provider of your choice. Do SSH into the server and run the following commands.

$ sudo apt update

It’s best practice to create a superuser rather than creating everything in the root directory.

$ sudo adduser calivert

This will ask you to set a password. Enter a password that you can remember.

After this add created user to the sudo group.

$ sudo usermod -aG sudo calivert

Switch to the superuser using.

$ su - calivert

Now install docker and docker-compose. See Docker and Docker-compose or refer official site.

Verify docker and docker-compose installation by running.

$ docker -v
$ docker-compose -v

As we switched to a new superuser created a new directory and cd into it.

$ mkdir frontend
$ cd frontend

Now, clone the repository or copy Your angular app code using FTP clients like FileZilla to this new directory.

Create a new file called Dockerfile that will be located in the project’s root folder.

# Stage 1: Use the official Node.js Alpine image as the base image
FROM node:21-alpine3.18 as build

# Set the working directory inside the container
WORKDIR /app

# Copy necessary files for dependency installation
COPY package.json package-lock.json angular.json

# Install the Angular CLI
RUN npm install -g @angular/cli

# Install Yarn package manager
RUN apk add yarn

# Install project dependencies using Yarn
RUN yarn install

# Copy the entire application to the container
COPY . .

# Build the Angular app with production configuration
RUN ng build --configuration=production

# Stage 2: Create a new image with a smaller base image (NGINX)
FROM nginx:1.25.3-alpine-slim

# Copy the NGINX configuration file to the appropriate location
COPY nginx.conf /etc/nginx/nginx.conf

# Copy the built Angular app from the 'calipharma' image to the NGINX HTML directory
COPY --from=build /app/dist/calipharma /usr/share/nginx/html

# Specify the command to run NGINX in the foreground
CMD ["nginx", "-g", "daemon off;"]

• FROMUsing an alpine base image with node.js version 21 naming this build as build you can give any name of your choice but it is not mandatory
• WORKDIR Setting the working directory to /app
• COPY Copy all necessary files before copying the app code

Note: This is a crucial step to gain the real advantage of the layer catching mechanism of Docker.

• RUN Installing the Angular CLI
• RUNAnd Installing the Yarn package manager

Note: Here I’m building an app with yarn package manager, you can use NPM too.

• RUN Install project dependencies using Yarn
• COPY Copy the entire application to the container
• RUN Build the Angular app with production configuration
• FROM Stage two of the build process with NGINX as the base image
• COPY Copy the NGINX configuration file to the appropriate location
• COPY Copy the built Angular app from the first build image to the NGINX HTML directory
• CMD instruction is configuring NGINX to run in the foreground when the container starts, allowing it to be the main process that keeps the container running. It ensures that the container doesn’t exit immediately after starting, which is essential for Docker containers to stay alive as long as the service inside them is running.

This Dockerfile implemented a multi-stage build.

Why multistage build is important?

· Small image size: The final image size is much smaller than a normal build image because it only copies artifacts or binaries from one stage to another. This results in reducing storage and improving network transfer speed.

· More secure: We should keep only the required dependencies because packages and dependencies can be potential sources of vulnerability for attackers. A multistage build is more secure because the final image includes only what it needs to run the application.

· Faster deployment: A reduced image size leads to faster image uploads and deployments, improving CI/CD pipeline speed. Smaller images also consume less storage space, resulting in quicker CI/CD builds, faster deployment times, and improved performance.

· Cost effective: the cost factor here is pretty negligible, but should not be ignored. Smaller images contribute to cost savings in cloud environments as you pay for storage and data transfer. Faster builds also mean reduced resource usage in cloud-based CI/CD platforms, potentially leading to lower costs.

To learn more about multi-stage docker builds click here

Create a new file called nginx.conf that will be located in the project’s root folder.

By default Nginx configuration file looks as follows

events{}
http {
    include /etc/nginx/mime.types;
    server {
        listen 80;
        server_name localhost;
        root /usr/share/nginx/html;
        index index.html;
        location / {
            try_files $uri $uri/ /index.html;
        }
    }
}

I don’t want to go into too much detail about what each line means here (if you would like there are two very nice links with more explanation at the end of this article). In general, here we define the server on which the application will be hosted, its port, and default behavior.

Finally, create docker-compose.yaml file to build and start our container

My docker-compose file looks like this:

version: '3'
services:
  calipharma:
    image: calipharmafrontend:1
    container_name: calipharma
    ports:
      - "8000:80"
    restart: always
    networks:
      - calipharmanetwork

networks:
  calipharmanetwork:
    driver: bridge

This file will build and start a docker container with the image calipharmafrontend, container name calipharma container port 80 will be bound to 8000 host port and will create network calipharmanetwork

The Docker build command equivalent to this docker-compose.yaml is

$ sudo docker build -t calipharmafrontend:1 .

Docker run command equivalent to this docker-compose.yaml is

$ sudo docker run -d -p 8000:80 --name calipharma –network calipharmanetwork  calipharmafrontend:1

If you like to learn docker and docker-compose. Refer to docker and docker compose YouTube playlist

Run the following docker-compose command to start the container

$ sudo docker-compose -f docker-compose.yaml -d up

Check the running status of the container

$ sudo docker ps -a

To learn docker compose click here

You need to allow inbound traffic on port 8000, this will allow you to access your container

$ sudo ufw allow 8000
$ sudo ufw enable

This will give you warning type y and hit enter

Command may disrupt existing ssh connections. Proceed with operation (y|n)? y
Firewall is active and enabled on system startup

Now run this command because the previous ufw enable command blocked the SSH port this will open it again

$ sudo ufw allow openssh

Rule added
Rule added (v6)

$ sudo ufw status

Status: active

To                         Action      From
--                         ------      ----
8000                       ALLOW       Anywhere
8000/tcp                   ALLOW       Anywhere
OpenSSH                    ALLOW       Anywhere
8000 (v6)                  ALLOW       Anywhere (v6)
8000/tcp (v6)              ALLOW       Anywhere (v6)
OpenSSH (v6)               ALLOW       Anywhere (v6)

Now type your server IP address in a browser with port 8000

http://<your_server_IP>:8000

You will see your container is running

Configuring NGINX as a reverse proxy

First step is Install nginx. You can refer to this or just run the command below.

$ sudo apt install nginx

Create a configuration file for Nginx using the following command

$ sudo vim /etc/nginx/sites-available/pharmacy.calivert.com

Here create file name similar to your domain name

Paste the below contents inside the file created

Don’t forget to replace <server_ip> with our server IP

server {
    listen 80;
    server_name <server_ip>;

    location = /favicon.ico {
        access_log off;
        log_not_found off;
    }
}

Activate the configuration using the following command

$ sudo ln -s /etc/nginx/sites-available/pharmacy.calivert.com /etc/nginx/sites-enabled/

Restart nginx and allow the changes to take place.

$ sudo systemctl restart nginx

Run below command, this will allow incoming connections to your Nginx web server. This is important for ensuring that external users can access your web server

$ sudo ufw allow 'Nginx Full'

output

Rule added
Rule added (v6)

$ sudo ufw status

output

Status: active

To                         Action      From
--                         ------      ----
8000                       ALLOW       Anywhere
8000/tcp                   ALLOW       Anywhere
Nginx Full                 ALLOW       Anywhere
OpenSSH                    ALLOW       Anywhere
8000 (v6)                  ALLOW       Anywhere (v6)
8000/tcp (v6)              ALLOW       Anywhere (v6)
Nginx Full (v6)            ALLOW       Anywhere (v6)
OpenSSH (v6)               ALLOW       Anywhere (v6)

Check the installation by curling or hitting the server IP address in a browser

$ curl http://<server_ip>

This will return status code 200 means the site is running

Or

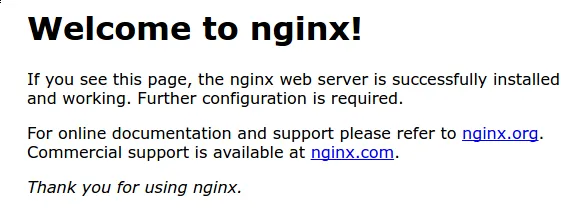

Browse to http://<server_ip> will give the following output

Nginx is successfully installed, Let’s use it as reverse proxy.

We know our container is running on localhost’s port 8000, we need to bind this port with our nginx http port, for that refer following code. Paste this code in the nginx configuration file which we have created earlier. Don’t forget to replace <server_IP> with your real IP.

server {
    listen 80;
    server_name <server_IP>;

    location = /favicon.ico {
        access_log off;
        log_not_found off;
    }

    location / {
        proxy_pass http://localhost:8000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

Restart Nginx and allow the changes to take place.

$ sudo systemctl restart nginx

We successfully set up NGINX as the reverse proxy.

Check it by browsing http://<server_ip>

Installing SSL certificate

Why is an SSL certificate important? See this

Check this guide to install SSL certificates.

Follow each step as it is only make sure to replace the domain name with your actual domain.

Certbot typically updates the configuration file for the specified domain or site to include SSL certificate-related configurations. However, you must still manually check and add the required configurations to the configuration file.

Refer following configuration.

server {
    listen 80;
    server_name pharmacy.calivert.com;
    return 301 https://$host$request_uri;
}

server {
    listen 443 ssl;
    server_name pharmacy.calivert.com;

    ssl_certificate /etc/letsencrypt/live/pharmacy.calivert.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/pharmacy.calivert.com/privkey.pem;

    location = /favicon.ico {
        access_log off;
        log_not_found off;
    }

    location / {
        proxy_pass http://localhost:8000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

What does the above configuration tell?

Let’s go through all main aspects…

The first server block redirects all HTTP traffic to HTTPS.

In the second server block, paths to ssl_certificate and ssl_certificate_key are specified, which are necessary for configuring SSL certificates in the web server. Everything apart from these will remain same. Save the file and run

$ sudo systemctl restart nginx

If you don’t get any error after running command, Congratulations! You have successfully installed an SSL certificate for your domain.

Verify installation by browsing to your domain address.

We’re done!
